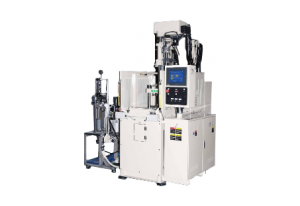

Liquid resin molding machine
VSS-L series
Liquid silicone rubber molding machine that can be used extensively for low-viscosity to high-viscosity materials with a sliding table fitted as standard equipment
Features
- ・Plunger injector designed for dedicated use in LIM machines enables low capacity to high capacity injection
- ・Use of static mixer for mixing two liquid components
- ・Revolution control hydraulic power unit fitted as standard equipment
- ・Material can be supplied from pails, drums and cartridges
- ・The sliding table can be changed to a rotary table
- ・It can also be changed to electric injection mechanism for high precision as an option
Specification
| VSS-100-75-L | VSS-800-75-L | |
| Injection volume | 100c㎥ | 800c㎥ |
| Injection pressure | 66MPa | 34MPa |
| Material mixing ratio | 1:1 | 1:1 |
| Mixing system | Static mixer | Static mixer |
| Mold clamping force | 750kN | 750kN |
| Mold closing stroke | 300mm | 300mm |
| Daylight | 500mm | 600mm |
| Slide table stroke | 550mm | 400mm |
| Ejection force | 19kN | 37kN |
| Machine weight | 4.5t | 5.1t |
| Ｗ×Ｄ×Ｈ（ｍｍ） | 1370×2520×2930 | 1430×2920×2850 |
