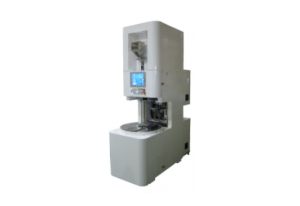

Small electric molding machine (rotary table)
VER5-S8EV VER15-S15EV
Small electric molding machine with a rotary table suitable for insert molding and other methods of molding of small parts
Features
- ・The smallest in-line screw type injection molding machine in industry, contributing to space saving with 20% reduction in footprint as compared to previous models of ours
- ・Best suited to molding of harnesses and small sensors and hoop molding because of its tie-bar-less structure
- ・Optimum for automated insert molding with a rotary table fitted as standard equipment
- ・Highly effective in high-mix low-volume production because of easy mold changeover
- ・Easy to install in an automated production line as no protrusion, such as control panel, is provided on the side surface
Specification
| VER5-S8EV | VER15-S15EV | |
| Screw diameter | 15ｍｍ | 18ｍｍ |
| Injection volume | 8c㎥ | 15c㎥ |
| Injection pressure | 150MPa | 150MPa |
| Injection speed | 100mm/sec | 100mm/sec |
| Mold clamping | Direct application of pressure on mold closed by ascending of mold plate | Direct application of pressure on mold closed by ascending of mold plate |
| Mold clamping force | 50kN | 150kN |
| Mold closing stroke | 200mm | 250mm |
| Daylight | 250mm | 400mm |
| Ejection force | 2.4kN | 3kN |
| Ejection stroke | 30mm | 30mm |
| Ｗ×Ｄ×Ｈ（ｍｍ） | 710×1545×2175 | 760×1650×2495 |
