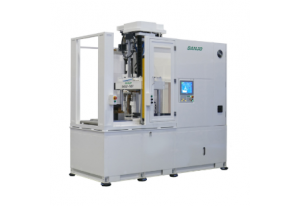

Transfer molding machine
VHS52-T4EV
Hybrid transfer molding machine developed for molding of motor parts
Features
- ・Control system achieving the lowest possible speed and pressure to prevent damages of mold inserts and deterioration of product performance caused by resin
- ・Lower mold sliding table system supporting the use of different shapes of mold inserts and the possibility of automation
- ・Use of energy-efficient inverter pump for the mold clamp control and electric control by servo motor for the TF control to achieve stable independent control and energy saving
- ・Injection of molding material while the mold is closed enables higher dimensional accuracy as compared to compression molding, and thin molding flash makes the finishing work easy
Specification
| Transfer thrust (theoretical value) | 0.1～40kN | Ejection force | 37kN |
| Attachable plunger | φ35～φ60 | Ejection stroke | 75mm |
| Mold clamping force | 569kN | Upper mold heater output | 6kW |
| Mold closing stroke | 200mm | Lower mold heater output | 6kW |
| Minimum mold thickness | 300mm | Hydraulic oil volume | 100L |
| Daylight | 500mm | Cooling water required | about 10L/min |
| Table stroke | 600mm | Power supply capacity | 40kVA |
| Table size | 500*500mm | Machine weight | about 4tons |
