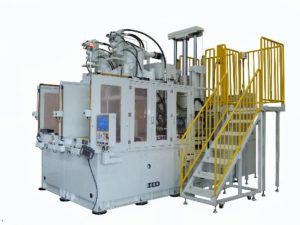

BMC molding machine
HVS-B series
Injection molding machine for seal molding using bulk molding compound BMC(Bulk Molding Compound）
Features
- ・Optimum for insert molding of coil parts with a sliding table fitted as standard equipment
- ・Automatic material charging device mounted on the injector makes it unnecessary to interrupt the molding operation to charge materials
- ・The large machine has a mold-clamping device at the top, which results in a low-floor structure for improved operability
- ・Machines of higher productivity with two mold clamping devices placed side by side and a moving injection device can be manufactured upon request
- ・Driving devices, such as molding push-down device and gate cutter, can be incorporated into the machine
- ・In-mold vacuuming device and rapid cooling circuit for the barrel can also be fitted
Specification
| HVS-250-75-B | HVS-1000-75/75-B | |
| Injection volume | 250c㎥ | 1000c㎥ |
| Injection pressure | 59MPa | 24MPa |
| Injection rate | 168c㎥/sec | 804c㎥/sec |
| Mold clamping force | 750kN | 750kN/750kN |
| Mold closing stroke | 250mm | 350mm/350mm |
| Daylight | 710mm | 700mm/700mm |
| Ejection force | 37kN | 37kN/37kN |
| Sliding table stroke | 700mm | 700mm/700mm |
| Material automatic charging chamber capacity | 15L | 19L |
| Machine weight | 7t | 20t |
| Ｗ×Ｄ×Ｈ（ｍｍ） | 1340×3940×3460 | 3900×5070×3630 |
